Description

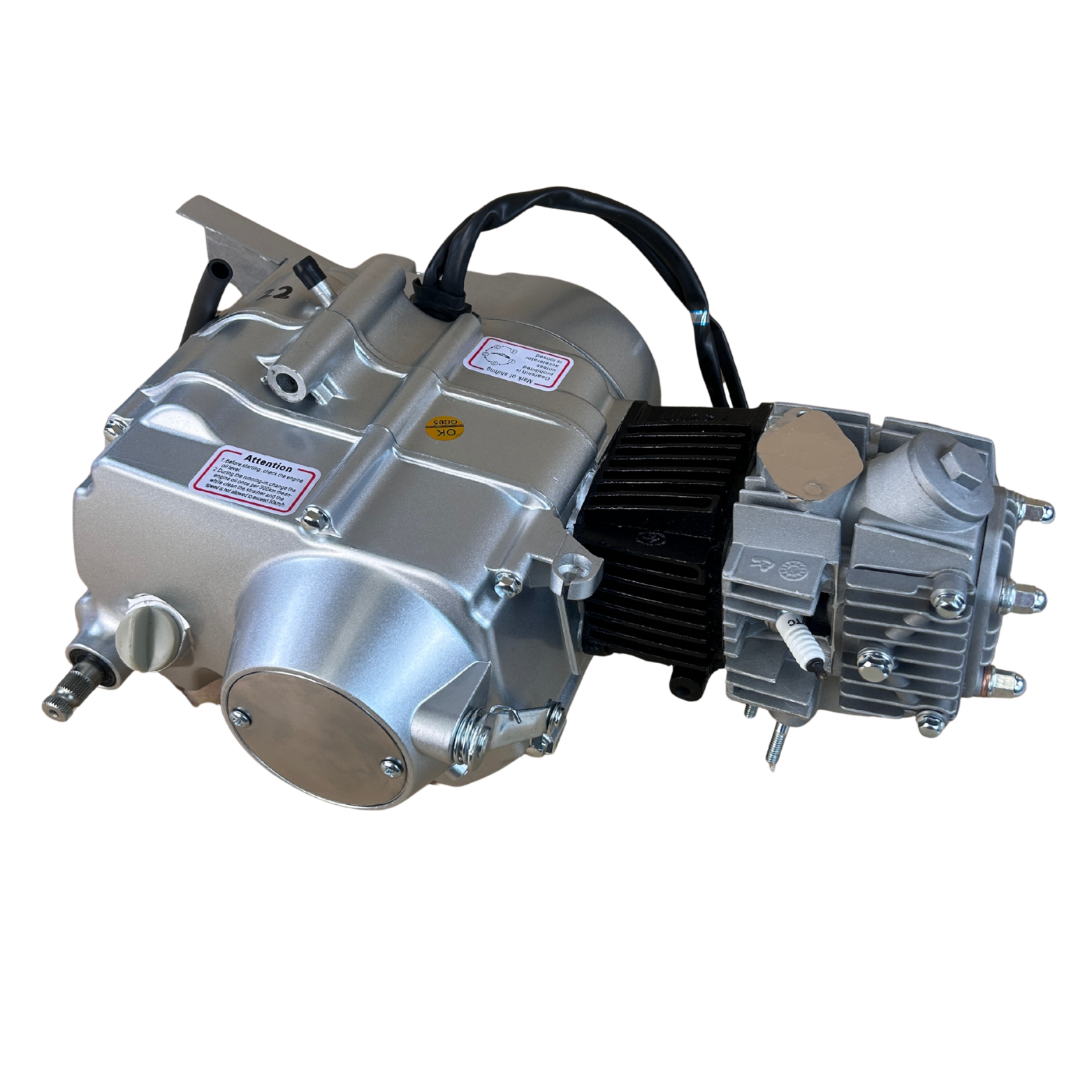

86cc 4-stroke shift engine block – 4 gears silver

Complete 86cc 4-stroke engine block, suitable for Honda Dax, Monkey, Chaly, PBR, and other minibikes with similar suspension.
Equipped with 4 manual gears (N-1-2-3-4)

Specifications

  • Cylinder capacity: 86cc

  • Type: 4-stroke

  • Gears: 4 manual (N-1-2-3-4)

  • Ignition: CDI

  • Start:  kickstart

  • Cooling: air-cooled

  • Suitable for 420-chain (standard Dax/Monkey transmission)

  • Weight: ± 20 kg

Electrical connections

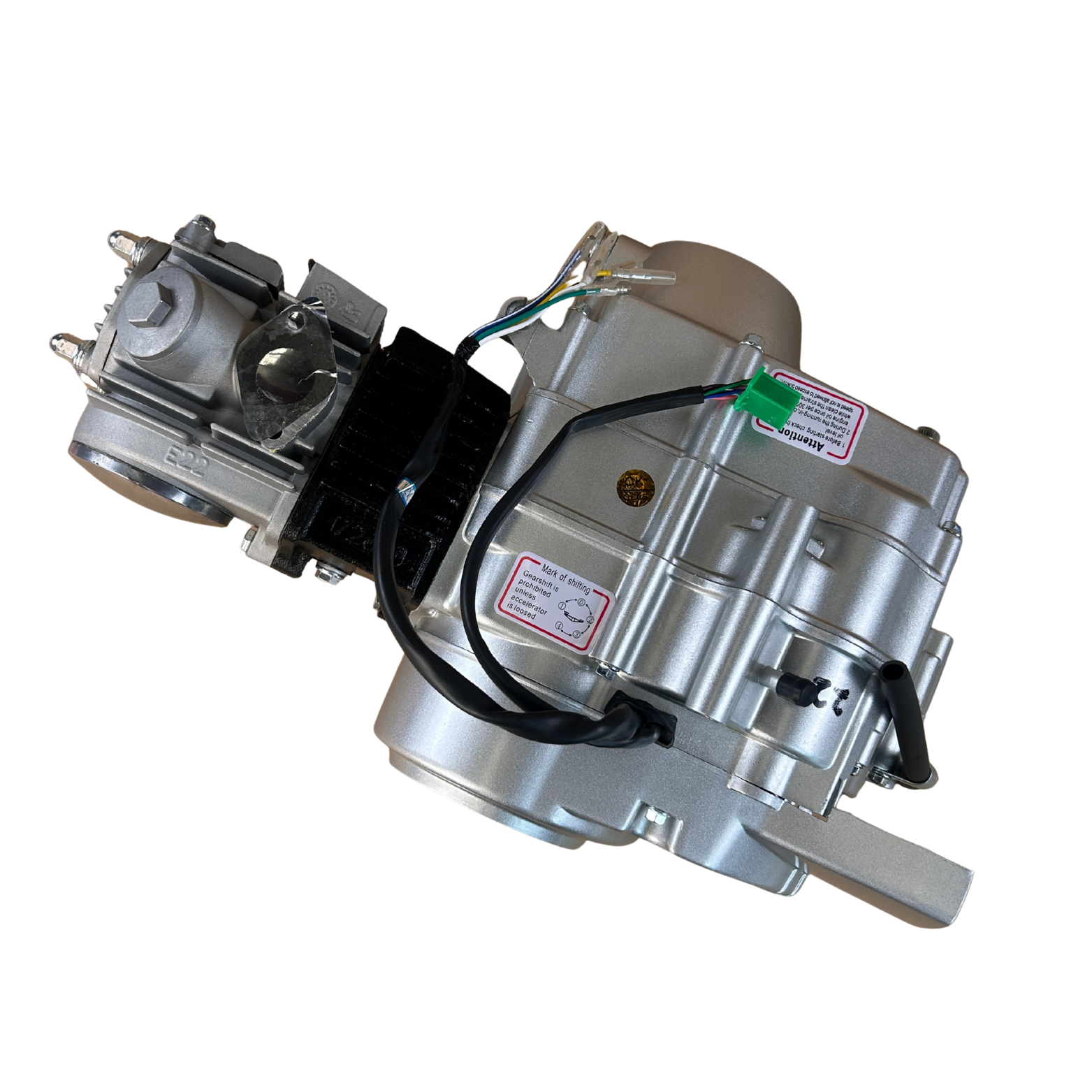

  • Equipped with two types of cable outputs so you can choose which best fits your wiring harness:

    • 5 loose cables with bullet connectors (classic connection)

    • Green 5-pin plug (modern connection)

  • Both cable sets are connected in parallel → you use one of the two (not simultaneously)

NOTE: This engine block is delivered dry to prevent oil leakage during shipping and contains no oil. Fill the engine block immediately upon receipt with 10W-40 motor oil. (Click here to view a suitable oil can)

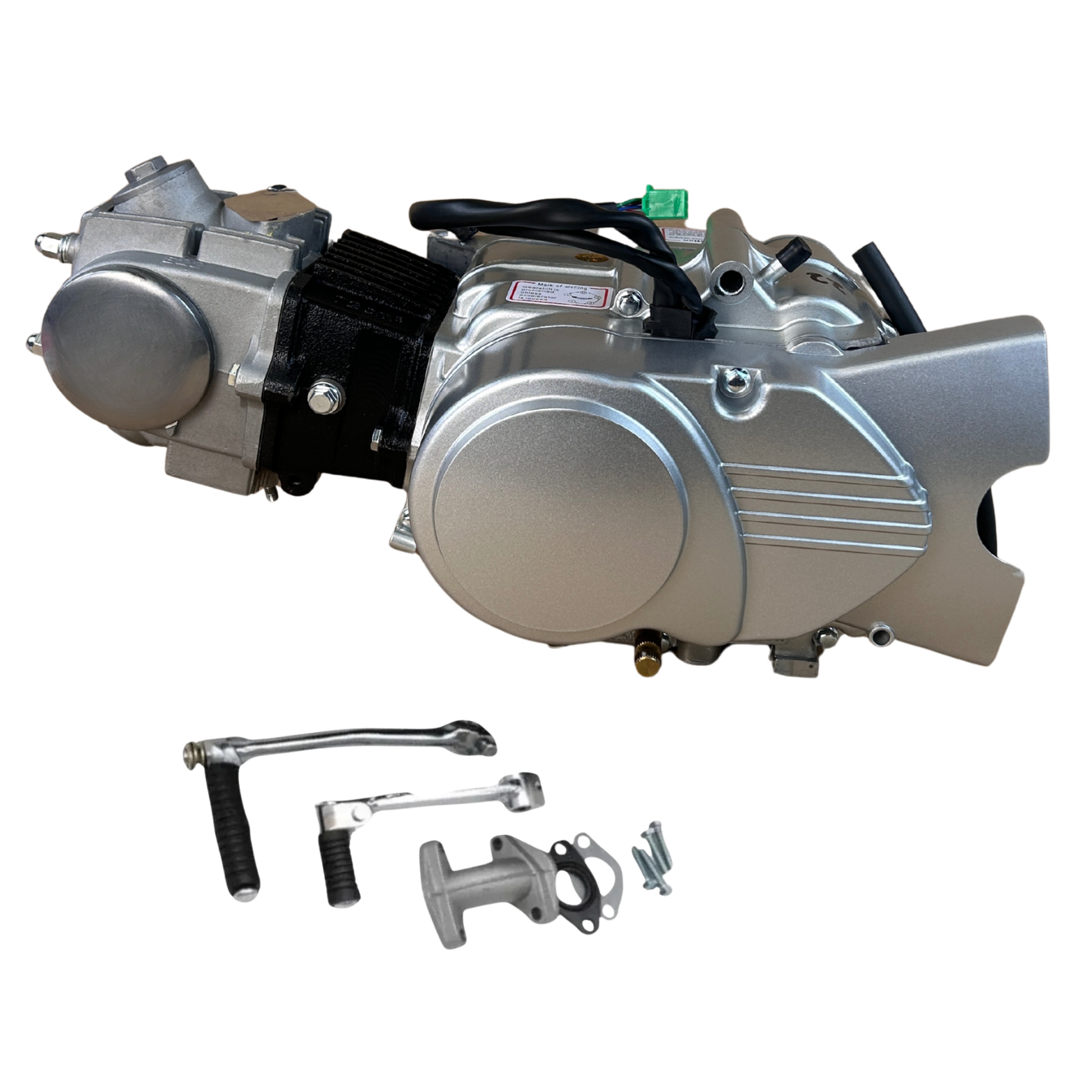

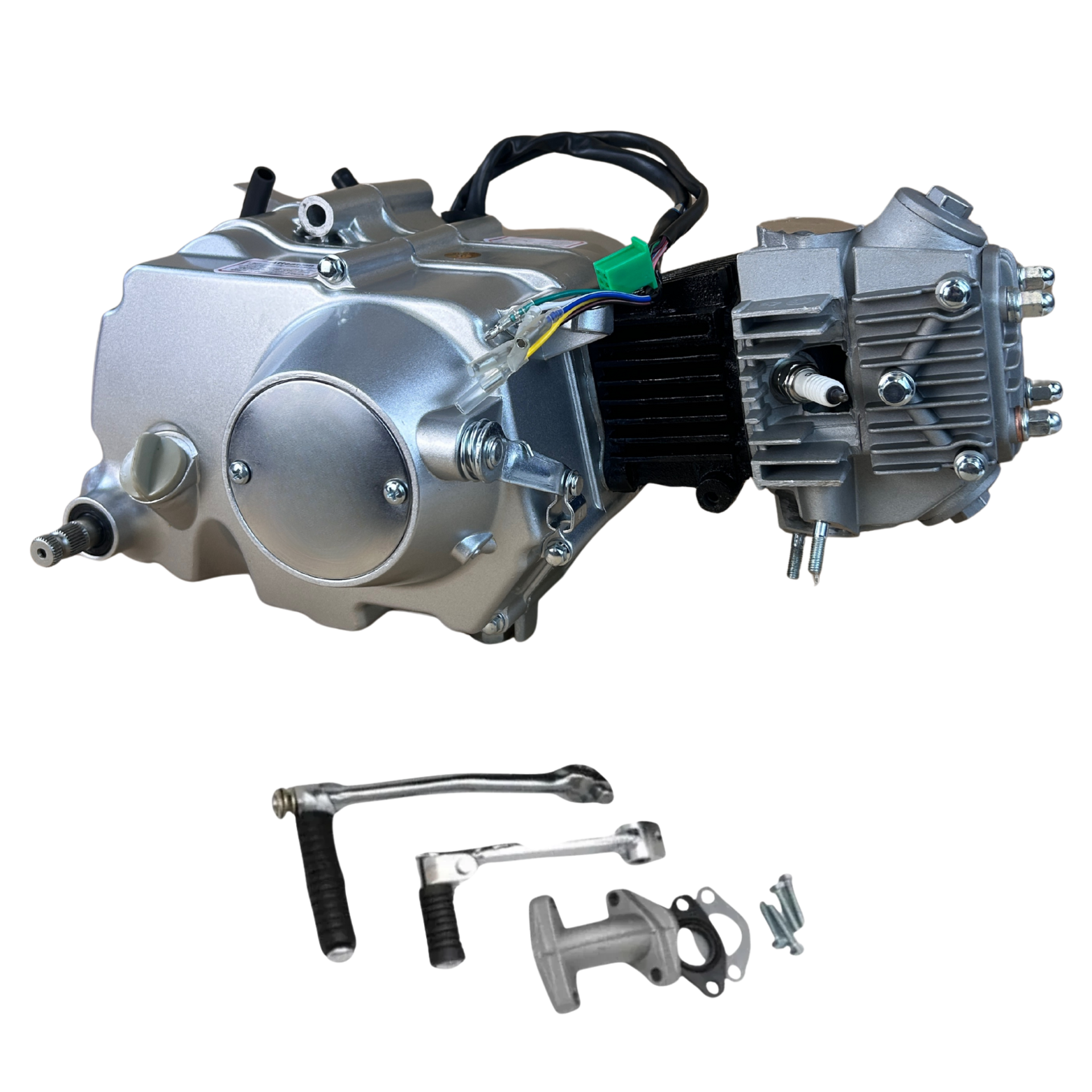

Includes spark plug, intake manifold, kickstart pedal, shift pedal, and front sprocket.
